Keycloak with User Sync
Goal
Configure SAML Single Sign-On to work with Keycloak, using Just-in-Time provisioning to automatically create and update users during Single Sign On.
Prerequisites
- Identity Provider Keycloak
- Your Atlassian application must be accessible via HTTPS. (read more about it in the Atlassian documentation, i.e. for Jira or Confluence)
Step-by-Step Setup Guide
This setup guide describes how to complete the initial setup for SAML Single Sign On (SSO) Add-on with Keycloak,
applicable for Add-on version starting 3.1.0. If you need any further support, please feel free to contact us here.
Install the SAML SSO app
In your Atlassian product, open the in-product marketplace as described in the Atlassian documentation.
Search for "resolution saml" and click "Install" for SAML Single Sign On (SSO) by resolution Reichert Network Solutions GmbH.
After the installation is complete, click on Manage, then choose Configure.
Now, you are on the Add-on / app configuration page and the first step of the setup wizard will appear.
Configure Keycloak for User Sync
Configuration in the Keycloak Web Console
Login to your Keycloak instance with administrator privileges and enter the Administration Console
Select the realm of the users who should be synchronized and click on Clients in the left-hand navigation bar.
Click on the Create button of the client view to register a new client for the User Sync connector
Provide a name for the client and select openid-connect as Client Protocol and save the client.

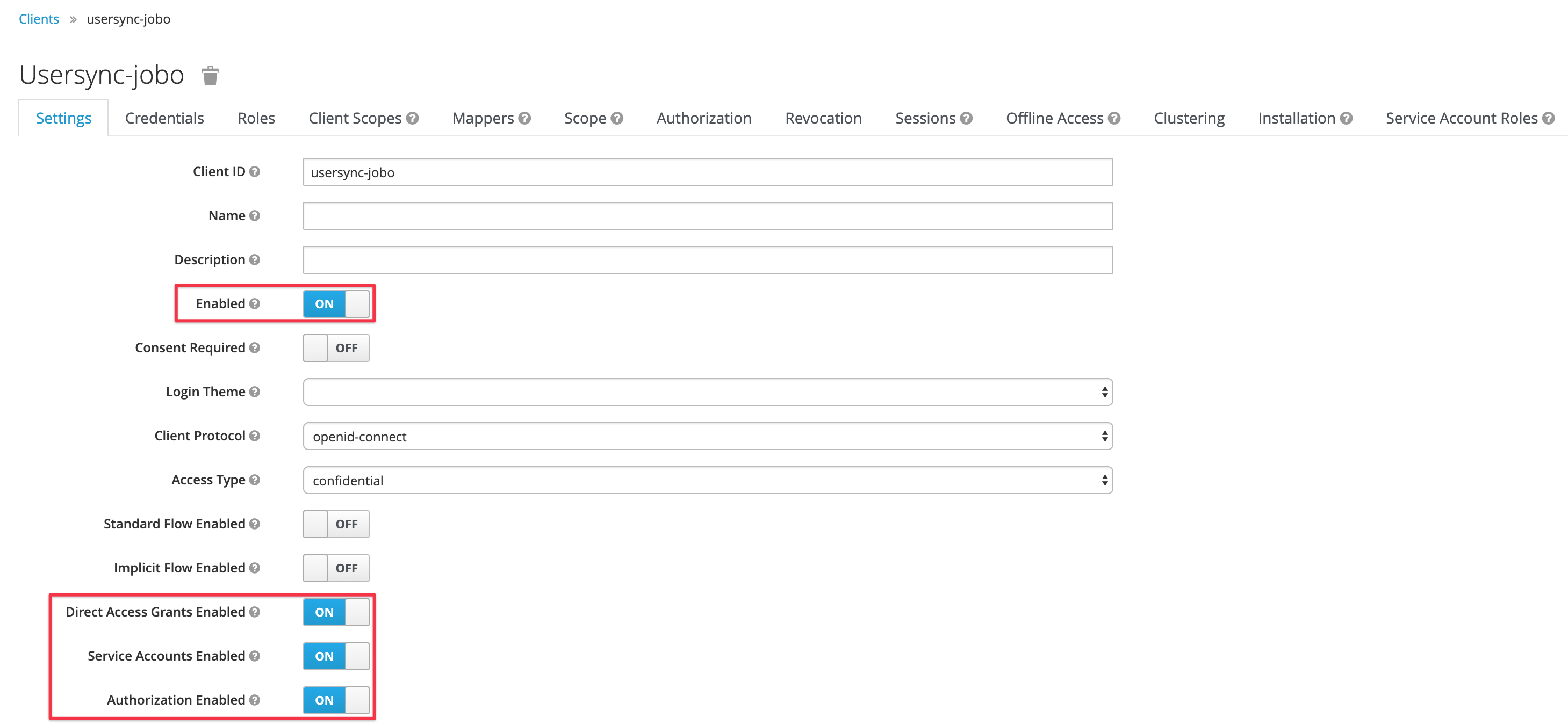

Switch to the Settings tab and change the configuration as depicted below and Save the changes:
Only if you've saved the setting above you'll be able to see and switch to the Credentials tab.
Select Client Id and Secret as Client Authenticator and copy the Secret displayed. You may regenerate it any time.
The following assignment might not be required, when registering a client in the master realm.
Switch to the Service Account Roles tab and select realm-management in the Client Roles select box.
Select manage-users and use the Add selected button to assign this role to the client:
The settings should look like the below now:
Configuration in User Sync Configuration page
Navigate to the administration console for Jira, Confluence or Bitbucket
Confluence: search for USERS & SECURITY under which you'll find User Sync
Jira: navigate to the User management tab in which you'll find User Sync
Bitbucket: navigate to Administration/ Accounts you'll find User Sync listed here
Click on Add Connector and choose Keyloak Connector.
Set a name, insert your Keycloak URL appending /auth at the end and provide
- realm name
- client-id
- secret
as per your Keycloak setup earlier
To schedule a periodic synchronization of your Keycloak directory with User Sync, click on Show Advanced Settings at the very bottom of the page.
Enable Scheduled Synchronization needs to be checked, the default cron expression would then cause a sync every hour.
Configure SAML SSO app
Add new Identity Provider (IdP)
Click on Add new IdP to start the wizard.
Adding a new IdP can also be done outside the wizard in the app configuration section Identity Providers
Select Keycloak as IdP Type.
You may also change the name and add a description. The name needs to be unique.
Click on Next.
Retrieve SAML Metadata for Keycloak Client
The next step enables you to retrieve the information Keycloak needs to work with our SAML SSO app.
Right click on the link highlighted below and save the linked content, a file in xml format.
Click on Next and pause the SAML SSO app configuration for a moment.
Configure Keycloak for SSO
Head over to your Keycloak administration console
Select the realm, if you've more than one configured (this example is using the realm called jobo)
Select Clients and Add Client and use Select file to open the xml file you've saved earlier
Once imported, save your settings.
You'll see the following screen, leave its settings untouched unless you know what to configure beyond standard configuration.
You may now continue with the SAML SSO app configuration, but leave your Keycloak admin page open,
as you'll need to copy something from it.
Import Keycloak IdP Metadata into SAML SSO app
You can choose from the following options in the Metadata Upload dropdown
- Help me generate a metadata URL
- I have a metadata URL
- I have a metadata XML file
- I want to past my metadata XML
- I don't have any metadata and want to enter the data manually
The preferred option is 2, using the metadata URL from Keycloak which will allow automatic updates of the metadata later.
For Keycloak starting versions 6, the Metadata URL can be found in the Realm Settings/ General tab:
Just copy the link for SAML 2.0 Identity Provider Metadata under Endpoints
Keycloak < 6
In Keycloak versions lower than 6, you might not see this link, but you can easily construct it yourself:
https://<your-keycloak-instance-name/auth/realms/<your-realm-in-lowercase>/protocol/saml/descriptor
Opening the URL should reveal an XML file with a first node called <EntitiesDescriptor xmlns="urn:oasis:names:tc:SAML:2.0:metadata" xmlns:dsig="http://www.w3.org/2000/09/xmldsig#" Name="urn:keycloak">
In the Import SAML IdP Metadata screen of the wizard, select the following options and paste the URL:
Proceed with the next steps described below.
Configure remaining SAML SSO app settings
User ID attribute and transformation
It's recommended to leave this option checked.
Click on Next.
User creation and update
This part of the configuration defines how users are provisioned in the Atlassian application, during Single Sign On with Keycloak.
- select Update with UserSync-Connector as User Update Method
- check the Reactivate inactive users checkbox, if you want
- select the User Sync connector created earlier
Click Save & Next to proceed as this is all you'll need to do when using User Sync for user provisioning with SAML SSO.
Test configuration of SAML SSO app
As a last step you can test your settings which can be executed by clicking on the corresponding Start test button.
Copy the link displayed and paste it into a new incognito/ private browsing window, and execute a login against Keycloak,
using a user and password which is a member of your realm in Keycloak.
The status of the authentication process is permanently updated in the window.
If there is any error at this point you need help with, please refer to the troubleshooting guide, which will also help us, should you open a support ticket with us.
Of course the test window above will display a lot of information about the errors already, but requires some deeper knowledge of the SAML protocol.
Enable login redirection
The last step is to configure redirect options, which you should only do if the test before succeeded.
Selecting Enable SSO Redirect will ensure that users are getting redirected to be logged in via SAML,
instead via the login form as before the SSO setup.
The Override Logged Out URL Method can be left at the default option.
It will redirect users after log out to a default page where they can login again via username and password or SSO again.
Save & Close to complete the setup and close the wizard. You are now ready to use Keycloak with SAML SSO in your Atlassian application.
If Enable SSO Redirect is enabled, you can login to your Atlassian application manually by browsing to the URL that fits your Atlassian application as listed below.
Use this URL, if you need to login a local user unknown to the ADFS or if there are any issues with Single Sign On.
- Jira: https://<baseurl>/login.jsp?nosso
- Confluence: https://<baseurl>/login.action?nosso
- Bitbucket: https://<baseurl>/login?nosso
