Goal

    Configure SAML Single Sign-On to work with Keycloak.

    Prerequisites

    • Identity Provider Keycloak
    • Your Atlassian application must be accessible via HTTPS. (read more about it in the Atlassian documentation, i.e. for Jira or Confluence)

    Step-by-Step Setup Guide

    This setup guide describes how to complete the initial setup for SAML Single Sign On (SSO) Add-on with Keycloak,
    applicable for Add-on version starting 3.1.0. If you need any further support, please feel free to contact us here.


    Install the SAML SSO app


    In your Atlassian product, open the in-product marketplace as described in the Atlassian documentation.
    Search for "resolution saml" and click "Install" for SAML Single Sign On (SSO) by resolution Reichert Network Solutions GmbH



    After the installation is complete, click on Manage, then choose Configure

    Now, you are on the Add-on / app configuration page and the first step of the setup wizard will appear.



    Configure SAML SSO app

    Add new Identity Provider (IdP)

    Click on Add new IdP to start the wizard.

    Adding a new IdP can also be done outside the wizard in the app configuration section Identity Providers

    Select Keycloak as IdP Type.
    You may also change the name and add a description. The name needs to be unique.
    Click on Next.

    Retrieve SAML Metadata for Keycloak Client

    The next step enables you to retrieve the information Keycloak needs to work with our SAML SSO app.
    Right click on the link highlighted below and save the linked content, a file in xml format.

    Click on Next and pause the SAML SSO app configuration for a moment.

    Configure Keycloak

    Head over to your Keycloak administration console

    Select the realm, if you've more than one configured (this example is using the realm called jobo)

    Select Clients and Add Client and use Select file to open the xml file you've saved earlier

    Once imported, save your settings.

    You'll see the following screen, leave its settings untouched unless you know what to configure beyond standard configuration.

    You may now continue with the SAML SSO app configuration, but leave your Keycloak admin page open,
    as you'll need to copy something from it.

    Import Keycloak IdP Metadata into SAML SSO app

    You can choose from the following options in the Metadata Upload dropdown

    1. Help me generate a metadata URL
    2. I have a metadata URL
    3. I have a metadata XML file
    4. I want to past my metadata XML
    5. I don't have any metadata and want to enter the data manually


    The preferred option is 2, using the metadata URL from Keycloak which will allow automatic updates of the metadata later.
    For Keycloak starting versions 6, the Metadata URL can be found in the Realm Settings/ General tab:

    Just copy the link for SAML 2.0 Identity Provider Metadata under Endpoints

    Keycloak < 6

    In Keycloak versions lower than 6, you might not see this link, but you can easily construct it yourself:

    https://<your-keycloak-instance-name/auth/realms/<your-realm-in-lowercase>/protocol/saml/descriptor

    Opening the URL should reveal an XML file with a first node called <EntitiesDescriptor xmlns="urn:oasis:names:tc:SAML:2.0:metadata" xmlns:dsig="http://www.w3.org/2000/09/xmldsig#" Name="urn:keycloak">


    In the Import SAML IdP Metadata screen of the wizard, select the following options and paste the URL:

    Proceed with the next steps described below.

    Configure remaining SAML SSO app settings

    User ID attribute and transformation

    It's recommended to leave this option checked.
    Click on Next.

    User creation and update

    Unless you want to assign groups to users after authentication or planning to use just-in-time provisioning, you should
    leave this option unchecked. This can be configured later anytime.

    Click Next to proceed.

    Back to Top

    Test configuration of SAML SSO app

    As a last step you can test your settings which can be executed by clicking on the corresponding Start test button.

    Copy the link displayed and paste it into a new incognito/ private browsing window, and execute a login against Keycloak,
    using a user and password which is a member of your realm in Keycloak.
    This user also needs to exist in Jira with that username already (Automatic user provisioning will be explained in an upcoming tutorial).

    The status of the authentication process is permanently updated in the window.

    If there is any error at this point you need help with, please refer to the troubleshooting guide, which will also help us, should you open a support ticket with us.
    Of course the test window above will display a lot of information about the errors already, but requires some deeper knowledge of the SAML protocol.

    Back to Top

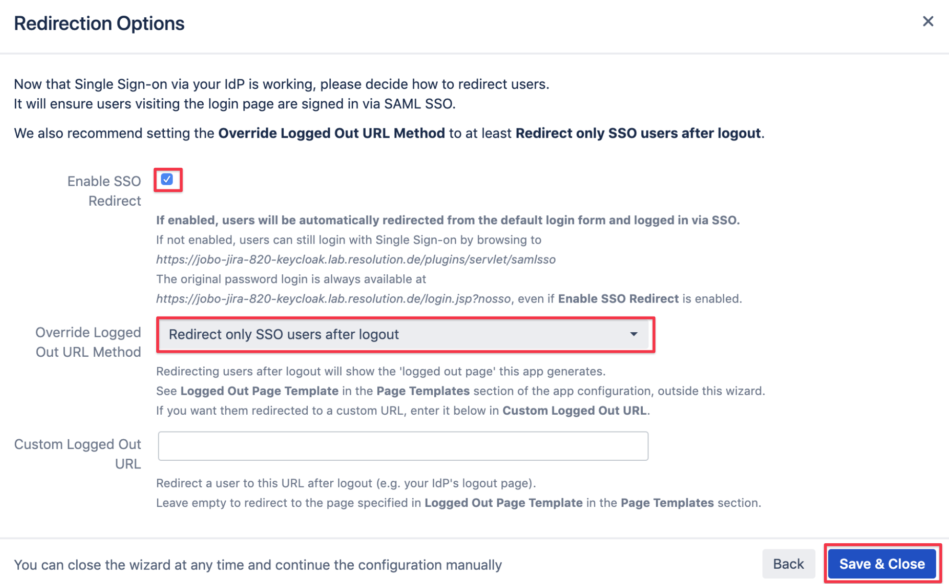

    Enable login redirection

    The last step is to configure redirect options, which you should only do if the test before succeeded.
    Selecting Enable SSO Redirect will ensure that users are getting redirected to be logged in via SAML,
    instead via the login form as before the SSO setup.

    The Override Logged Out URL Method can be left at the default option.
    It will redirect users after log out to a default page where they can login again via username and password or SSO again.

    Save & Close to complete the setup and close the wizard. You are now ready to use LDAP with SAML SSO in your Atlassian application.

    If Enable SSO Redirect is enabled, you can login to your Atlassian application manually by browsing to the URL that fits your Atlassian application as listed below.
    Use this URL, if you need to login a local user unknown to the ADFS or if there are any issues with Single Sign On.

    • Jira: https://<baseurl>/login.jsp?nosso
    • Confluence: https://<baseurl>/login.action?nosso
    • Bitbucket: https://<baseurl>/login?nosso
    • Bamboo 5: https://<baseurl>/userlogin!default.action?nosso
    • Bamboo 6: https://<baseurl>/userlogin!doDefault.action?nosso
