OneLogin configuration

Video Guide

User Guide

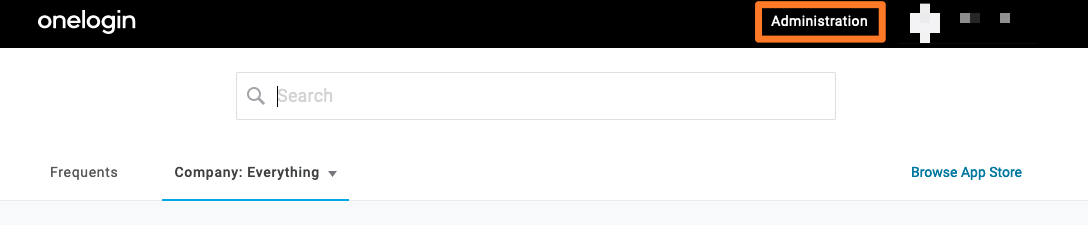

First, login into your OneLogin domain and click Administration.

OneLogin_Administration

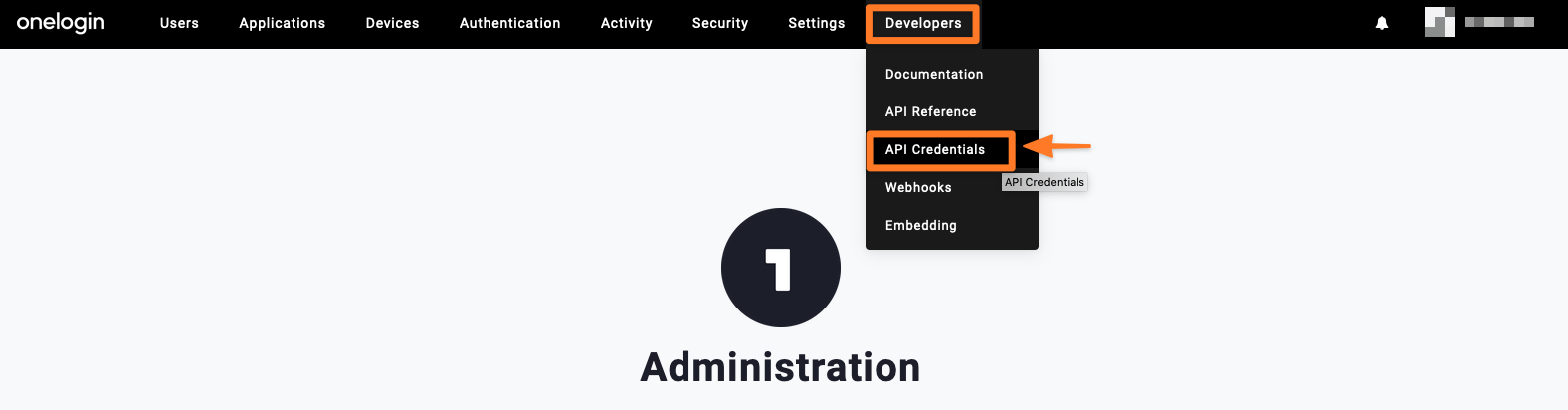

Next, hoover over DEVELOPERS and click API Credentials.

OneLogin_API_Credentials

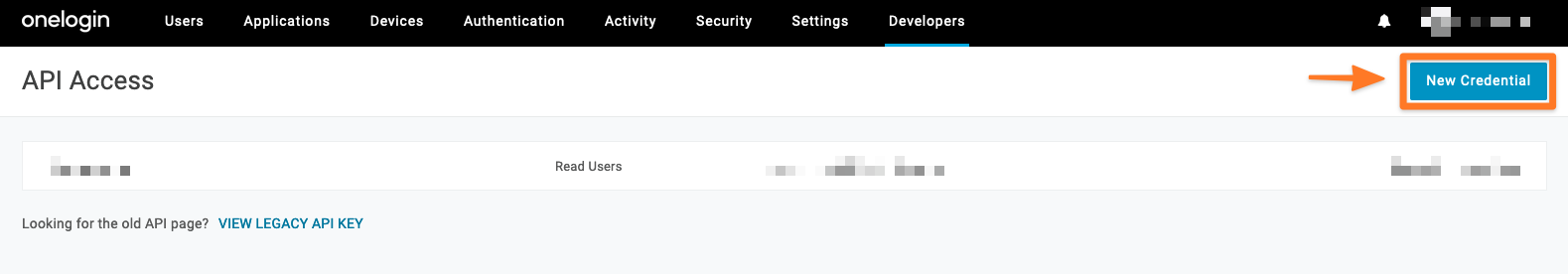

Then, click New Credential.

OneLogin_Credentials

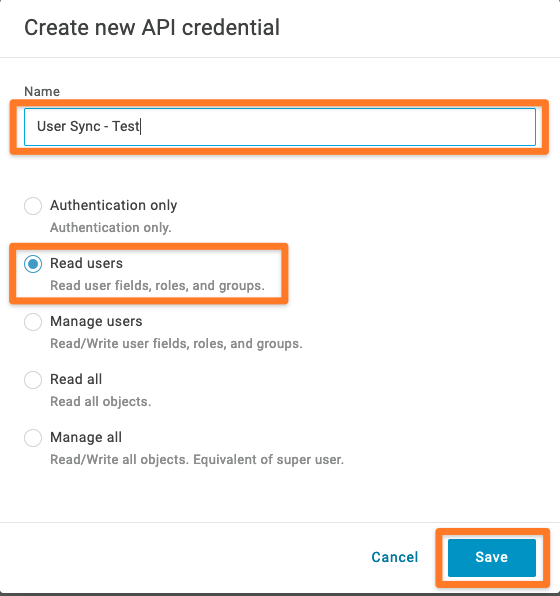

Please provide a Name and choose Read users. Click Save to continue.

OneLogin_new_Credentials_settings

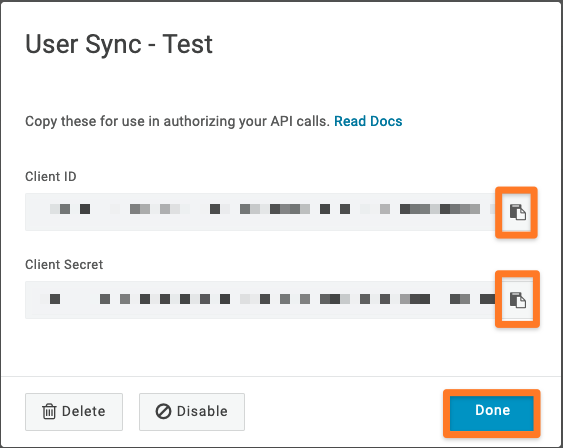

Please copy & paste the Client Secret and the Client ID to a text editor of your choice.

OneLogin_Credentials

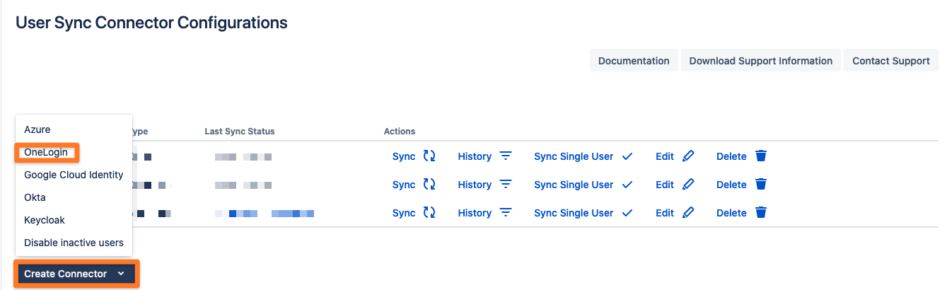

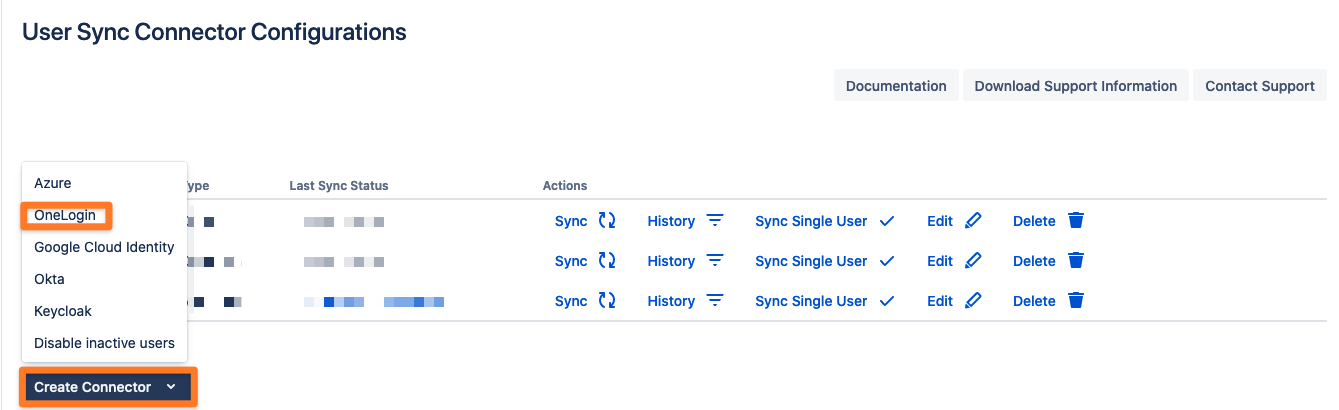

Now, go to your Atlassian product and navigate to the User & Group Sync settings. Click Create Connector and choose OneLogin.

UserSync_add_Connector_OneLogin

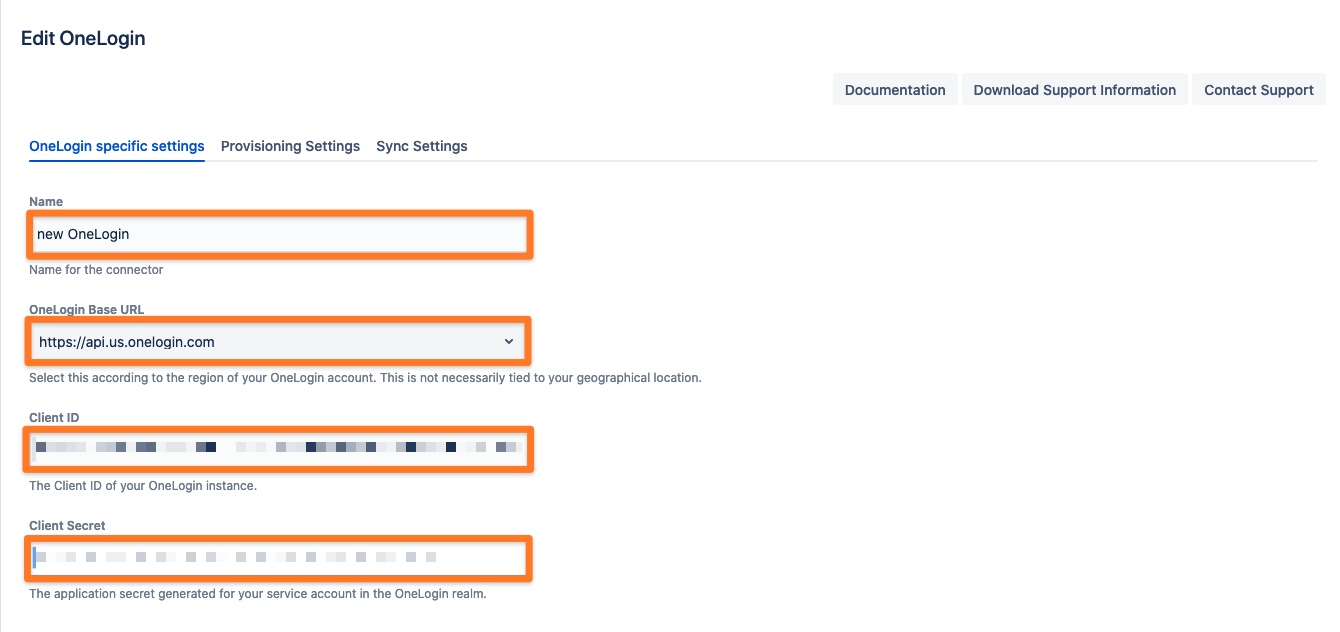

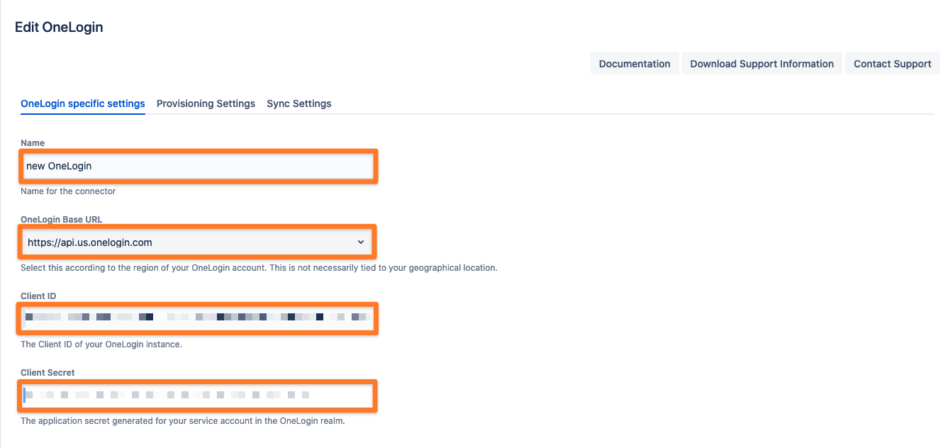

You can change or add a Name for your OneLogin Connector. Please enter the Client ID and die Client Secret. Please also choose the OneLogin Base URL of your OneLogin account.

OneLogin_Settings

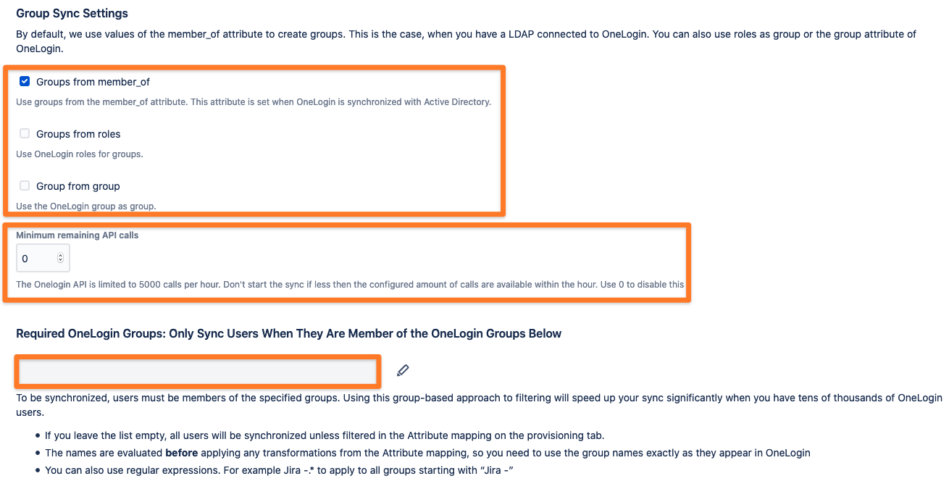

Next, please choose what to sync for the groups. You can sync the Groups from member_of (in case you have an external connector integrated to OneLogin), Groups from roles (the OneLogin roles for groups), and you can sync the OneLogin Group from group of a user.

You could also modify the Minimum remaining API calls. In this case the sync don't start if less than the configured amount of calls is available within the hour.

Last but not least you could add a required OneLogin Group "Required OneLogin Groups:". User & Group Sync would only sync users when they are member of the OneLogin Group(s). Using this group-based approach to filtering will speed up your sync significantly.

groups

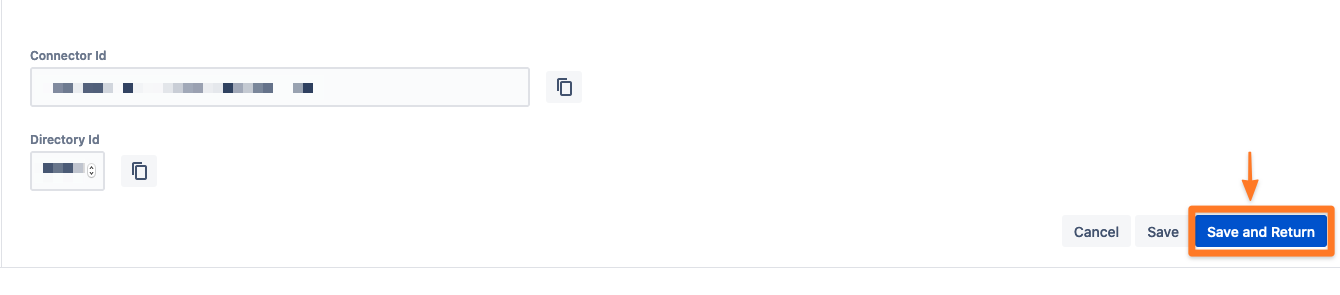

Don't forget to save "Save and Return" your settings!

save_and_return

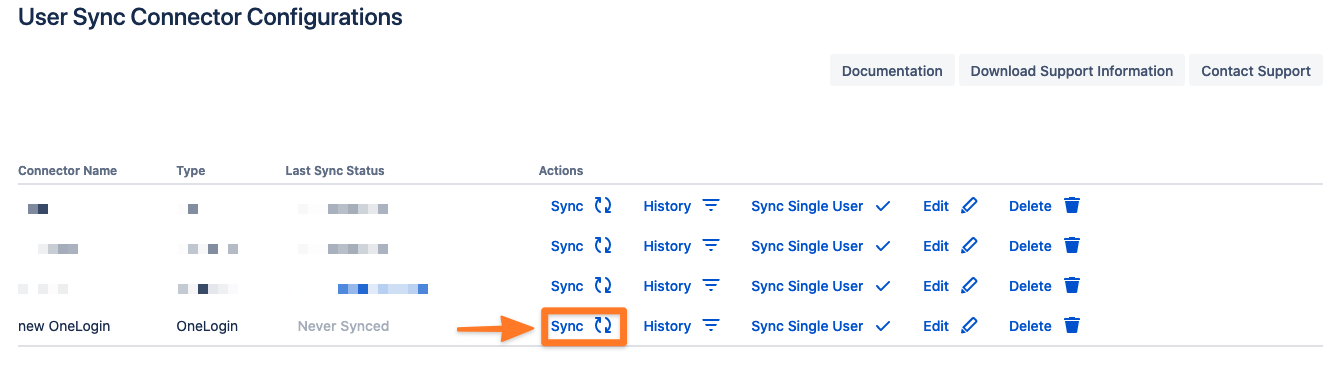

You are now ready to toggle a full sync. Simply click the "Sync" button.

full_sync

Scheduled Synchronization

To take full advantage of User Sync, click on the Sync Settings tab and Enable Scheduled Synchronization.
You can control the sync interval with the modal but also by editing the Cron expression.

Do not forget to save your configuration. Scroll down to the bottom of the page and press Save or Save and Return.
