Azure AD with Just-in-Time Provisioning
Goal
After completing this setup guide, you will have setup Azure AD and your Atlassian product for the SAML SSO app. Additionally, you will enable the SSO redirection and test SSO.
Azure AD only support transmitting group ids via SAML attributes, not the group names. This tutorial assumes that you manage your groups locally and not with Azure AD. If you like to manage groups via Azure AD and using JIT, you have to edit the manifest of the Azure enterprise application and create a transformation rule per group, which transforms the group id to a name. Please have a look at our KB for further information.
Prerequisites
To use the SAML SSO app with Azure AD, you need the following:
- An Azure AD subscription
- A (trial) subscription for the SAML SSO app
- Admin access to your Atlassian product
Video Guide
Here you will find a detailed video guide soon.
Step-by-Step Setup Guide
Configure Azure AD for the SAML SSO App
Adding an Enterprise Application for the SAML SSO App
Navigate to the Azure Portal. In the left panel, click on "Azure Active Directory".
Again, in the left panel under "Manage" click on "Enterprise Applications".

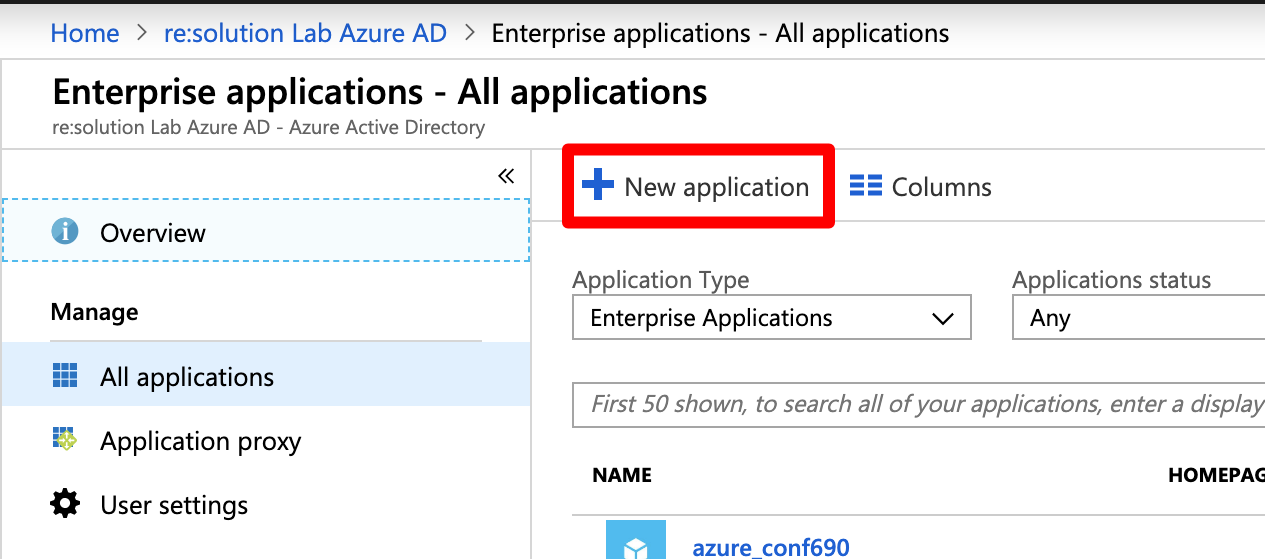

Now, click on "New Application" to add a new Enterprise Application.
We created presets in the gallery to configure Azure AD for our app. Search for "resolution gmbh" and choose the version which matches your Atlassian product, e.g. "SAML SSO for Jira by resolution GmbH" for Jira. For the rest of this tutorial, the screenshots will show the Jira version of the marketplace app, but the configuration is identical for the other gallery apps.
In the next step, click "Add" to add a new enterprise application. You can also choose new name for it.
Please wait until the Azure portal redirects you to the enterprise application you just created. This can take a couple of seconds. For the next steps, you will configure the application for Single Sign On.
Configure the Enterprise Application for Single Sign On
After adding an enterprise application for the app, it must now be configured to work with your Atlassian product.
In the left panel under "Manage", choose "Single sign-on".

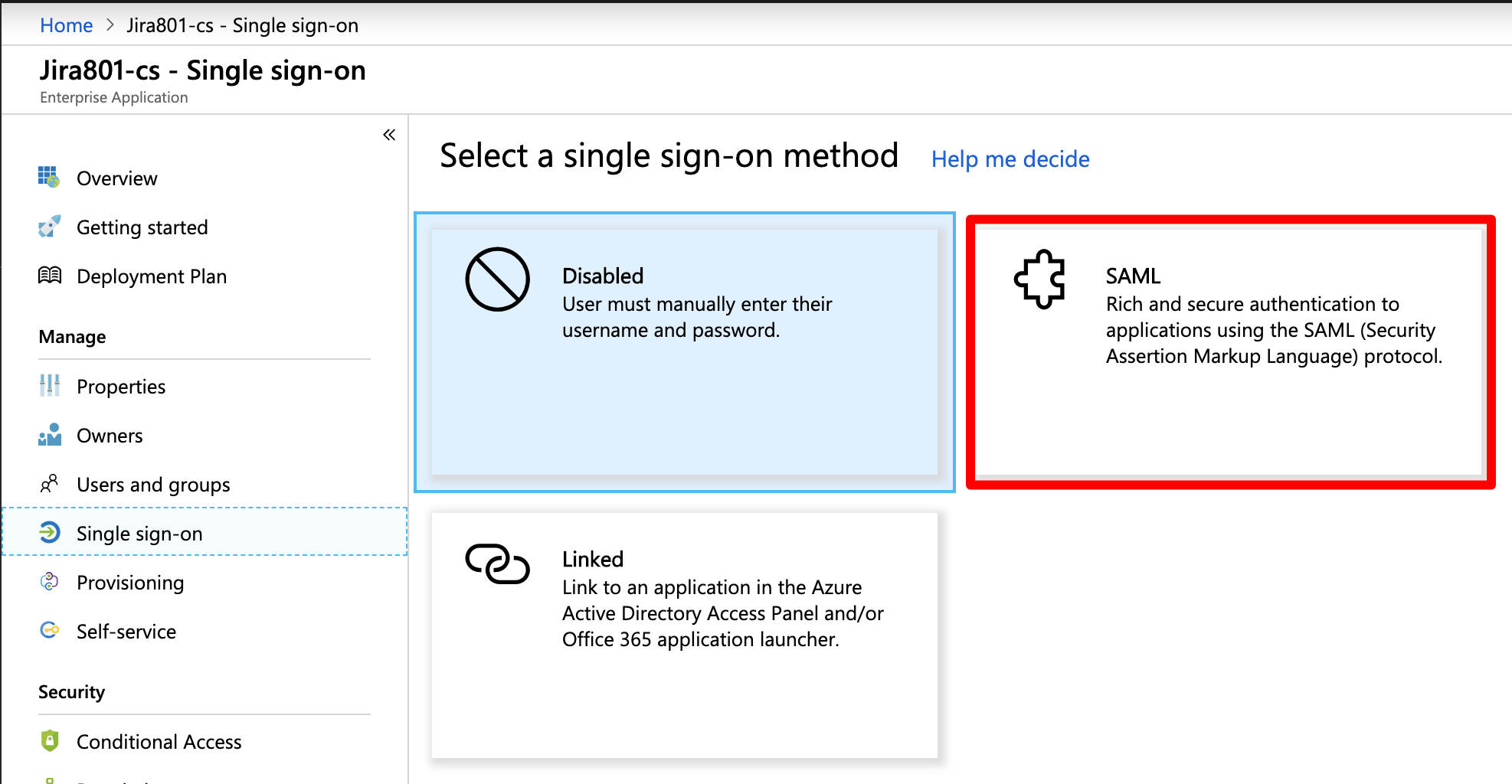

Click on "SAML" as the Single Sign On method.

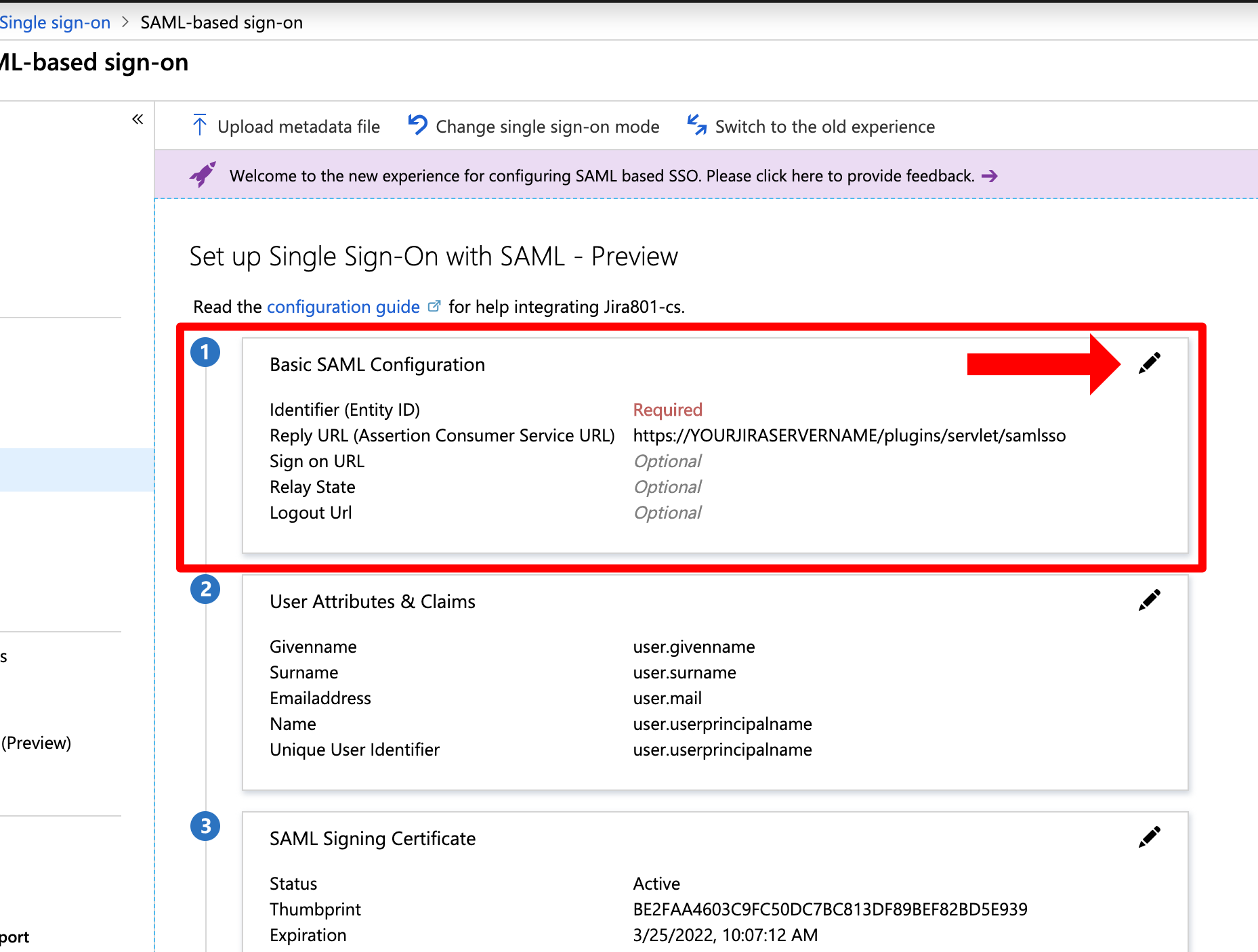

Next, click on the pen symbol in "Basic SAML Configuration".
For the next step, you have to set the Identifier (Entity ID) and the Reply URL (Assertion Consumer Service URL).
In general, the needed URL for both is "https://<base-url>/plugins/servlet/samlsso". You need to substitute "<base-url>" with the base url of your Atlassian product instance.
The gallery application already provides the needed URLs. You only have to substitute "YOURJIRASERVERNAME" with the URL of your Atlassian product instance and then click "Save".
"YOURJIRASERVERNAME" will be called differently depending on the gallery application, e.g. "YOURCONFLUENCESERVERNAME" for the Confluence version of the gallery application.

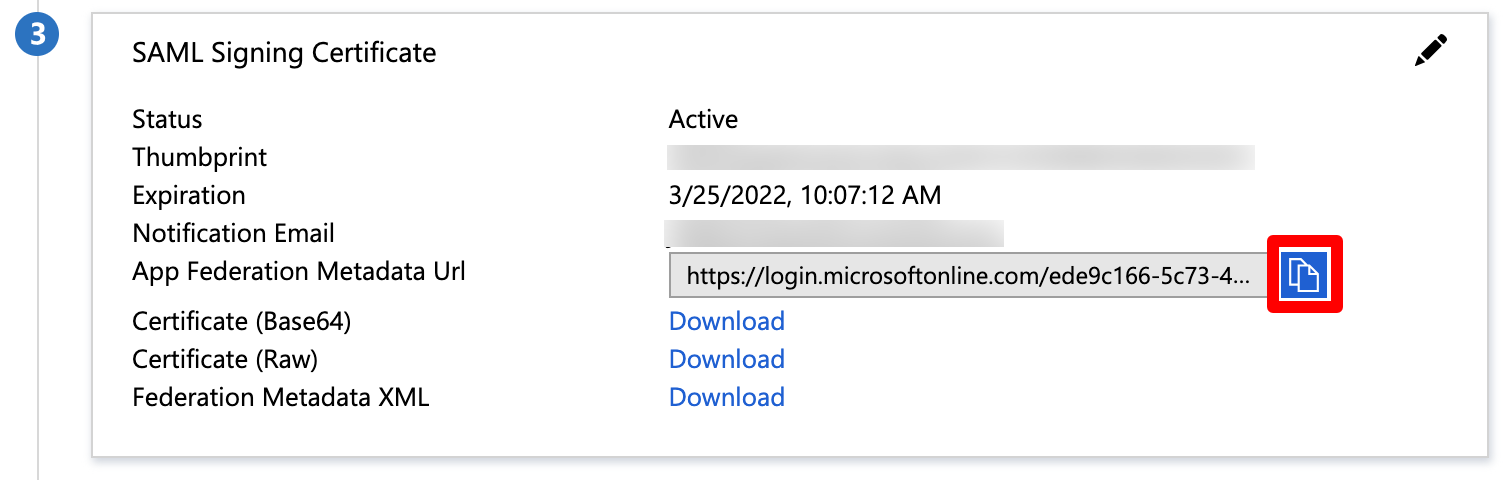

You will be redirected the "Set up Single Sign-On with SAML - Preview" page again. Scroll down to "SAML Signing Certificate" and copy the "App Federation Metadata Url". The link will be used to configure your Atlassian product for the SAML SSO app.
Deactivate User Assignment Required
In the left panel, click on "Properties". In the new window, scroll down to "User assignment required?" and set the option to "NO"
When set to "YES", users and groups must be first added to the Enterprise application before users are able to use SSO.
Click on "Save".
Configure Your Atlassian Product for the SAML SSO App
Install the SAML SSO App
In your Atlassian product, open the in-product marketplace as described in the Atlassian documentation.
Search for "resolution saml" and click "Install" for SAML Single Sign On (SSO) by resolution Reichert Network Solutions GmbH.
After the installation is complete, click on Manage, then choose Configure.
Now, you are on the Add-on / app configuration page and the first step of the setup wizard will appear.
Configure the SAML SSO App
After you clicked "Configure", the Wizard will be triggered. If not, or if you want to add another Identity Prover (IdP) to your existing configuration, click on "+ Add IdP". This guide assumes, that you there is no IdP configured.
The Wizard greets you with information, click on "Add new IdP" to proceed.

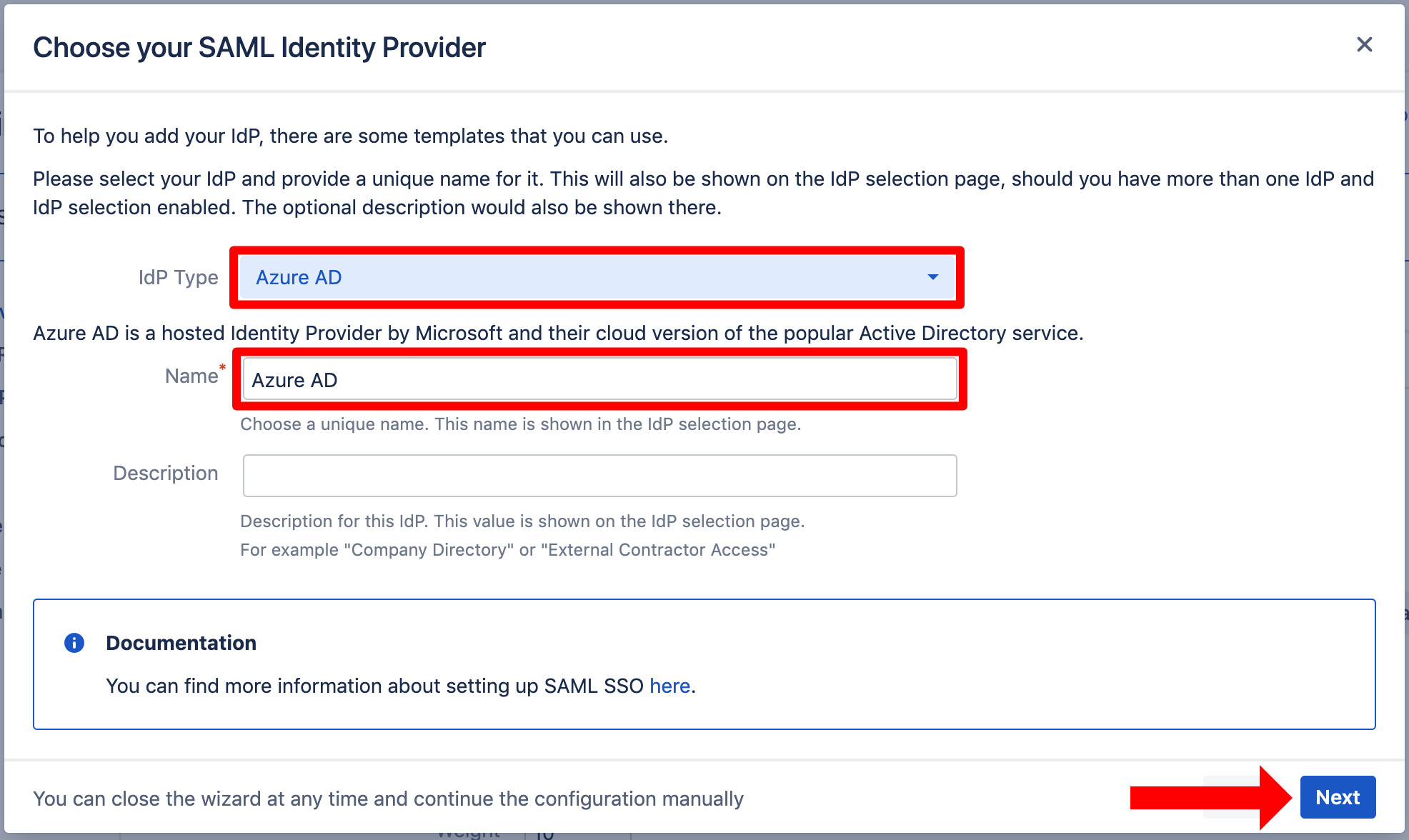

For the IdP Type, choose "Azure AD". You can also choose a name. Click on "Next" to continue.

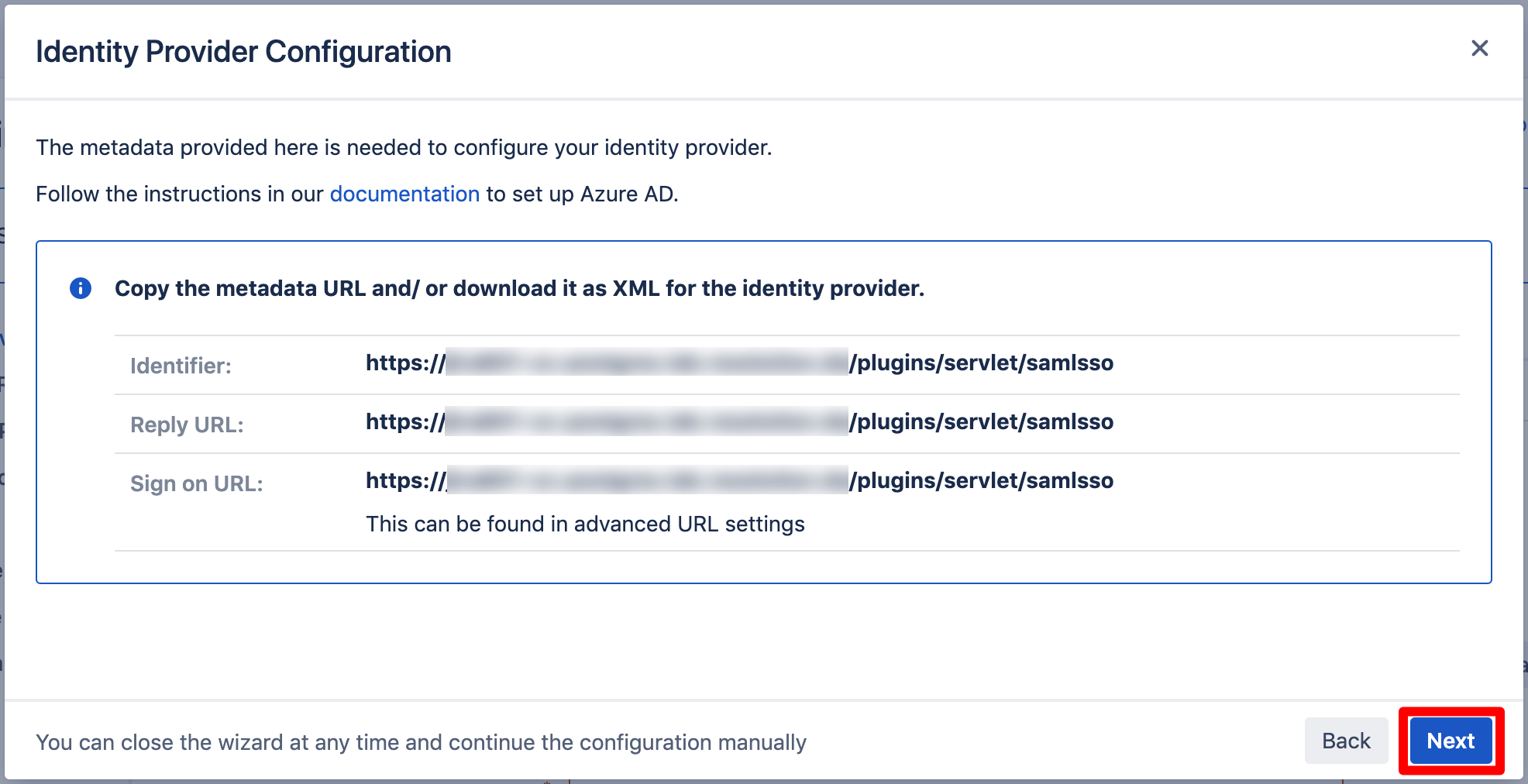

Here, click on "Next" again. You might recognise the provided URL since you added them in Azure AD before.
Now, you will paste the App Federation Metadata Url you have obtained before. Paste the App Federation Metadata Url in the "Metadata URL" textfield.
You can also configure the plugin without the metadata XML URL. Please choose another option from the dropdown menu and proceed as the wizard guides you.
Afterwards, click on "Import".
Click on "Next" to continue.
If you configured your Atlassian product and your Identity Provider in a common way, you do not need to change anything here. In that case, just click "Next".
For User update, choose "Update from SAML-Attributes".
The window now expands. There are various options you can set. For this tutorial, new users should be created automatically when first accessing your Atlassian product instace, thus tick "Create New Users".
You can also choose the directory for new users or to update non-SAML provisioned users, i.e. which are already present in your Atlassian product. By activating the option, they can also be updated via SAML attributes when they log in.
Further, the "Full Name Attribute" and "Email Attribute" must be set. Set the first to "http://schemas.microsoft.com/identity/claims/displayname" and the second to "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name" (both without quotation marks).
If your eMail Adresses are different from the Login name, you should use the attribute "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress" as the "Email Attribute" instead. However this only works for Users that are Mail enabled (Exchange Online) or have this Attribute sync'd into Azure AD via Directory Connect from Active Directory. If the attribute is empty, User creation will fail.
Scroll down to the group settings.
Depending on your Atlassian product, it is a good idea to set (default) user group(s) for new users, such as "jira-software-users" for Jira or "confluence-users" for Confluence. Without assigning new users to the product specific group, they are not able to use your Atlassian product. Also, feel free to activate any option which suits your needs.
Testing SSO
The wizard also allows to test the Single Sign On. Just follow the steps to test if the login works as expected.
Click on "Start test" to proceed.
Copy the red marked link and open a new incognito/private tab or a different web browser. Then, paste the link and navigate to it.

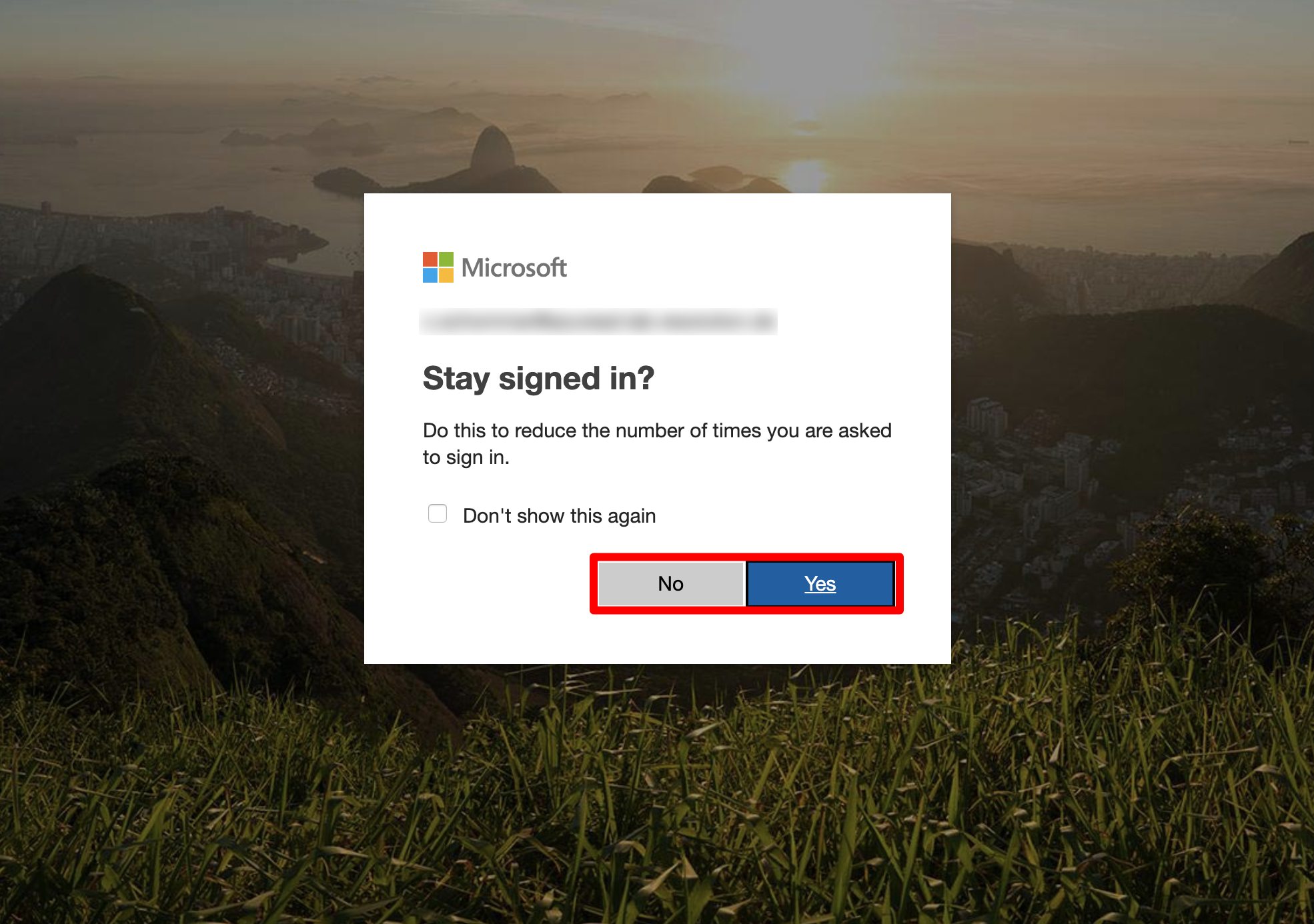

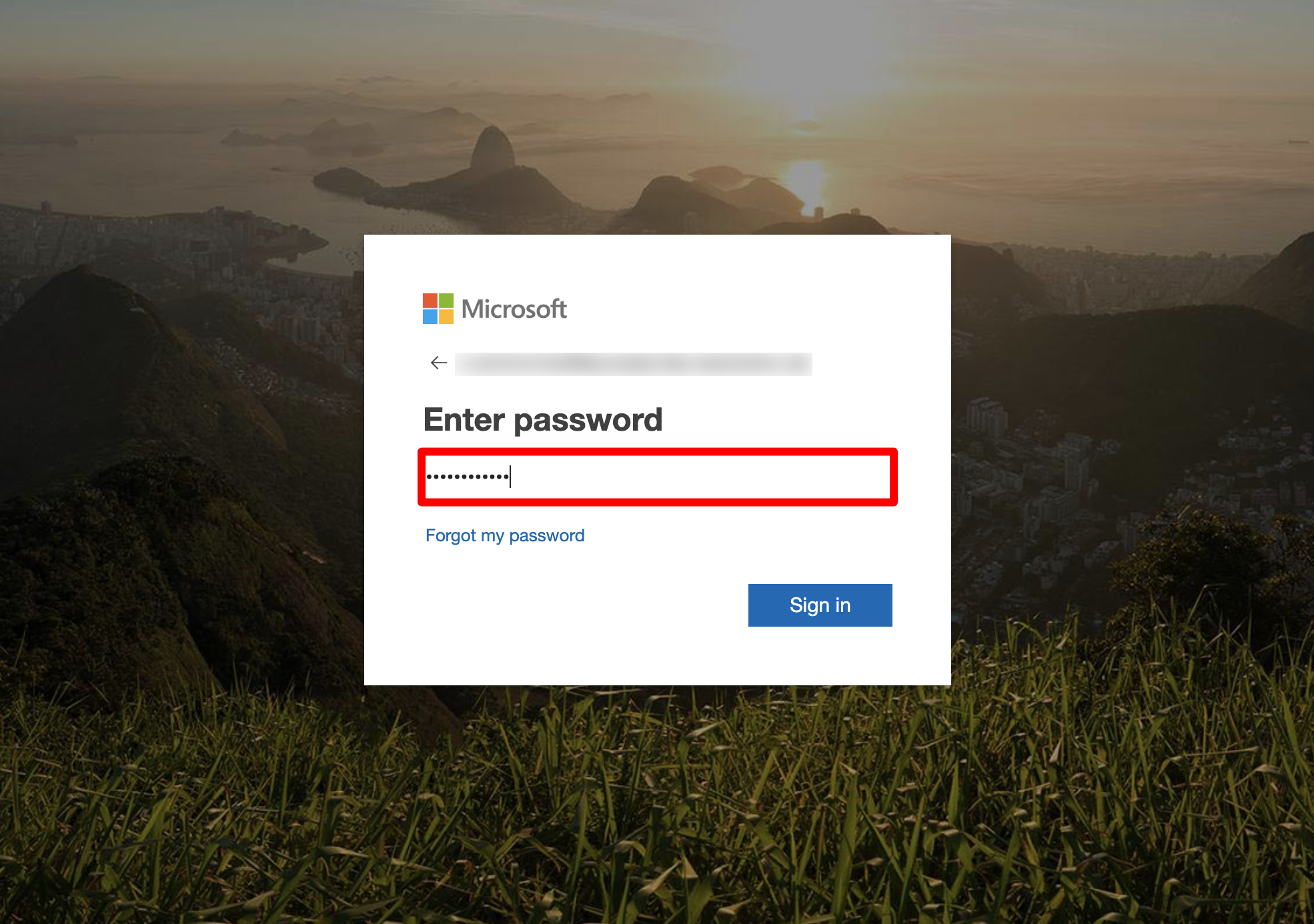

You will be now redirected to Azure AD's login page. Please log-in with you username and password.
If everything worked fine, you will logged in into Jira. In theother tab/browser in which you were configuring the SAML SSO plugin, you can see also the "SUCCESS" status, if everything worked as expected. Click "Next" to proceed.
SSO Redirection
As a last step, you can set the "Enable SSO Redirect" option. If set, all users will be redirected to Single Sign On, thus they will be logged in via the IdP. Click on "Save & Close" to finish the configuration.
