PingOne with Manual Provisioning
Goal
After completing this setup guide, you will have to set up PingOne with Manual Provisioning and your Atlassian Server or Data Center product for the SAML SSO app. Additionally, you will test SSO and enable SSO redirection.
Prerequisites
To use the SAML SSO app with PingOne, you need the following:
A PingOne subscription
A (trial) subscription for the SAML SSO app for Server or Data Center
Admin access to your Atlassian product
Users are already available in Jira and PingOne.
Step-by-Step Setup Guide
Install the SAML SSO App for Server or Data Center
In your Atlassian product, open the in-product marketplace as described in the Atlassian documentation.
Search for "resolution saml" and click "Install" for SAML Single Sign On (SSO) by resolution Reichert Network Solutions GmbH.
After the installation is complete, click on Manage, then choose Configure.
Now, you are on the Add-on / app configuration page and the first step of the setup wizard will appear.
First Steps - Wizard
After you clicked "Configure", the Wizard will be triggered. If not, or if you want to add another Identity Prover (IdP) to your existing configuration, click on "+ Add IdP". This guide assumes, that there is no IdP configured.
The Wizard greets you with information, click on "Add new IdP" to proceed.

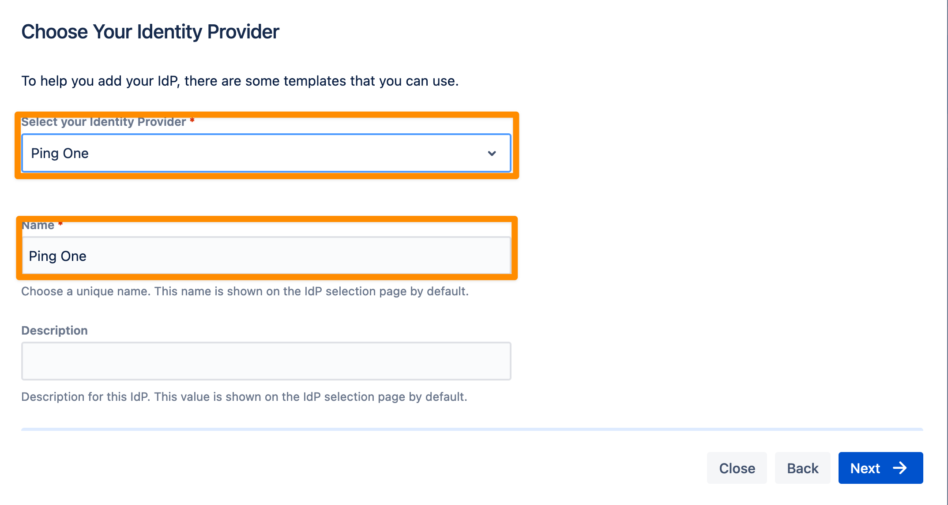

For the IdP Type, choose "PingOne" and then add a name. You can also optionally add a description. Click on "Next" to continue.

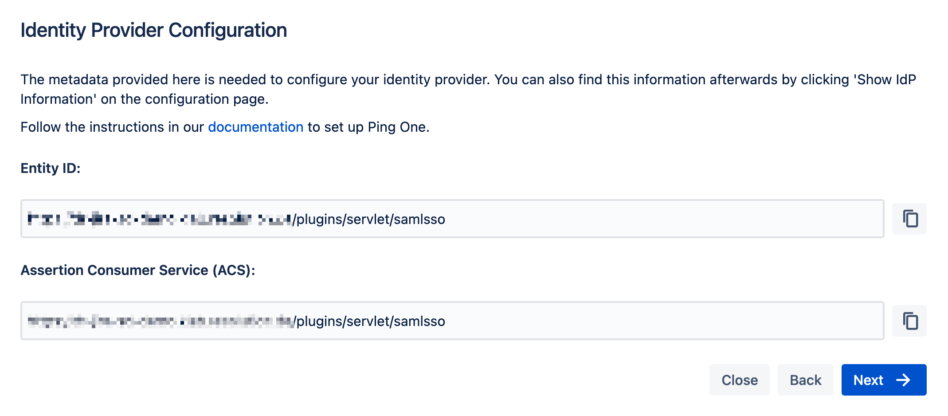

In the next step, you will configure PingOne. Please keep this tab open or copy the information.
Create and Configure a PingOne App for SAML SSO for Atlassian Data Center or Server
Adding an Application for the SAML SSO App

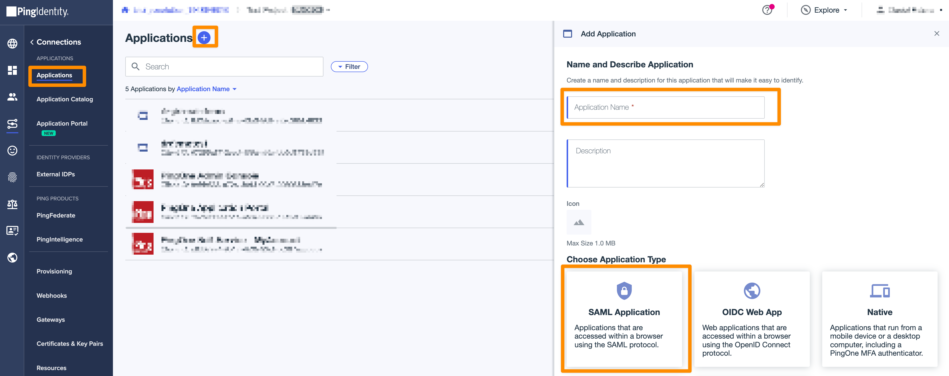

Log into the PingOne Portal as an admin. Go to Connections > Applications > Click "+" > Give it a meaningful name > Choose Application Type "SAML Application", and hit the "Configure" button.

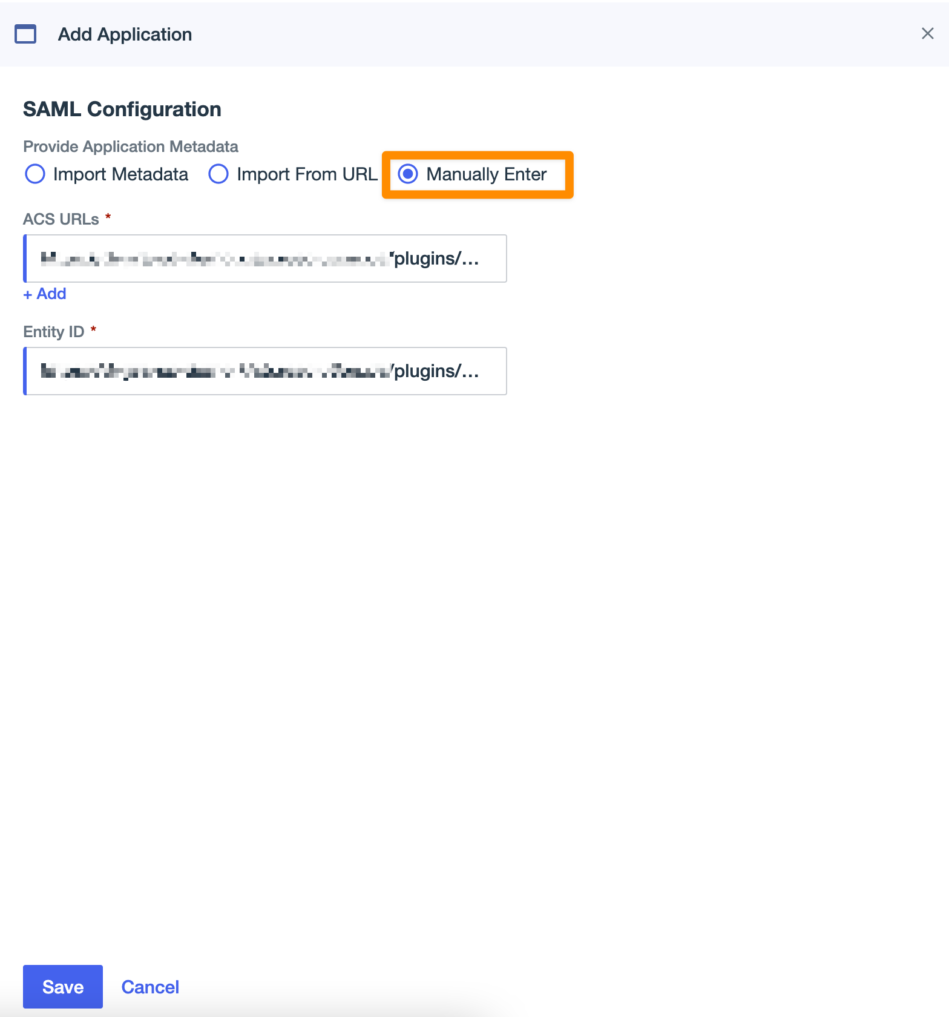

On the initial SAML Configuration tab, click Manually Enter and copy the ACS URL and Entity ID into the fields. After that, you can click Save.

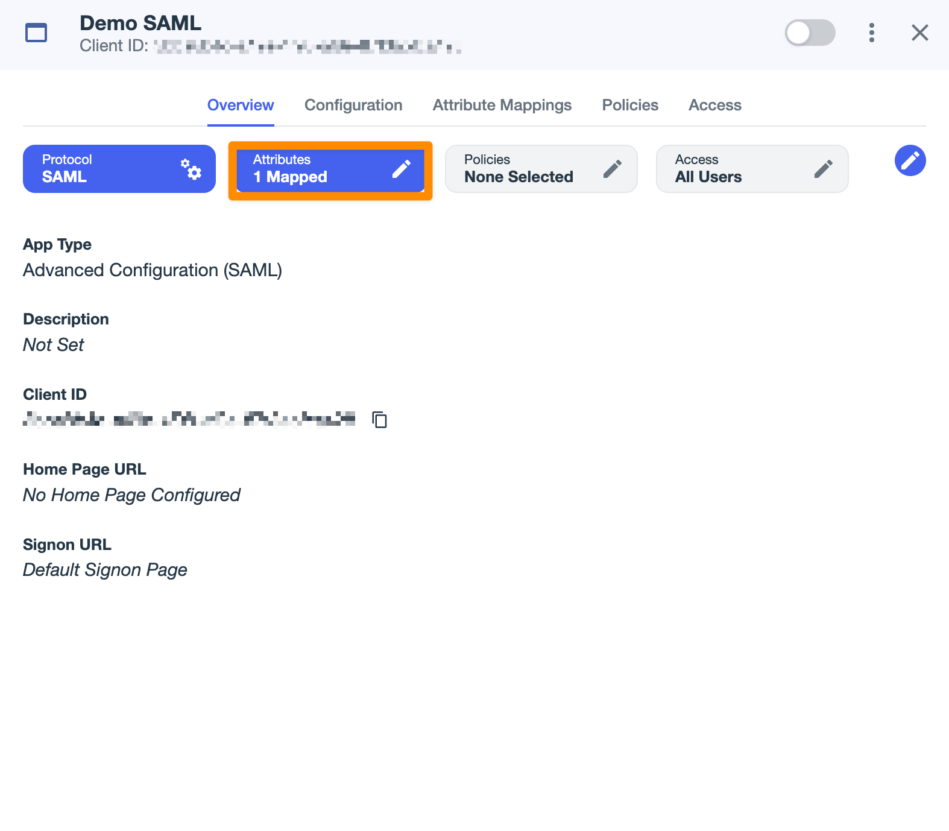

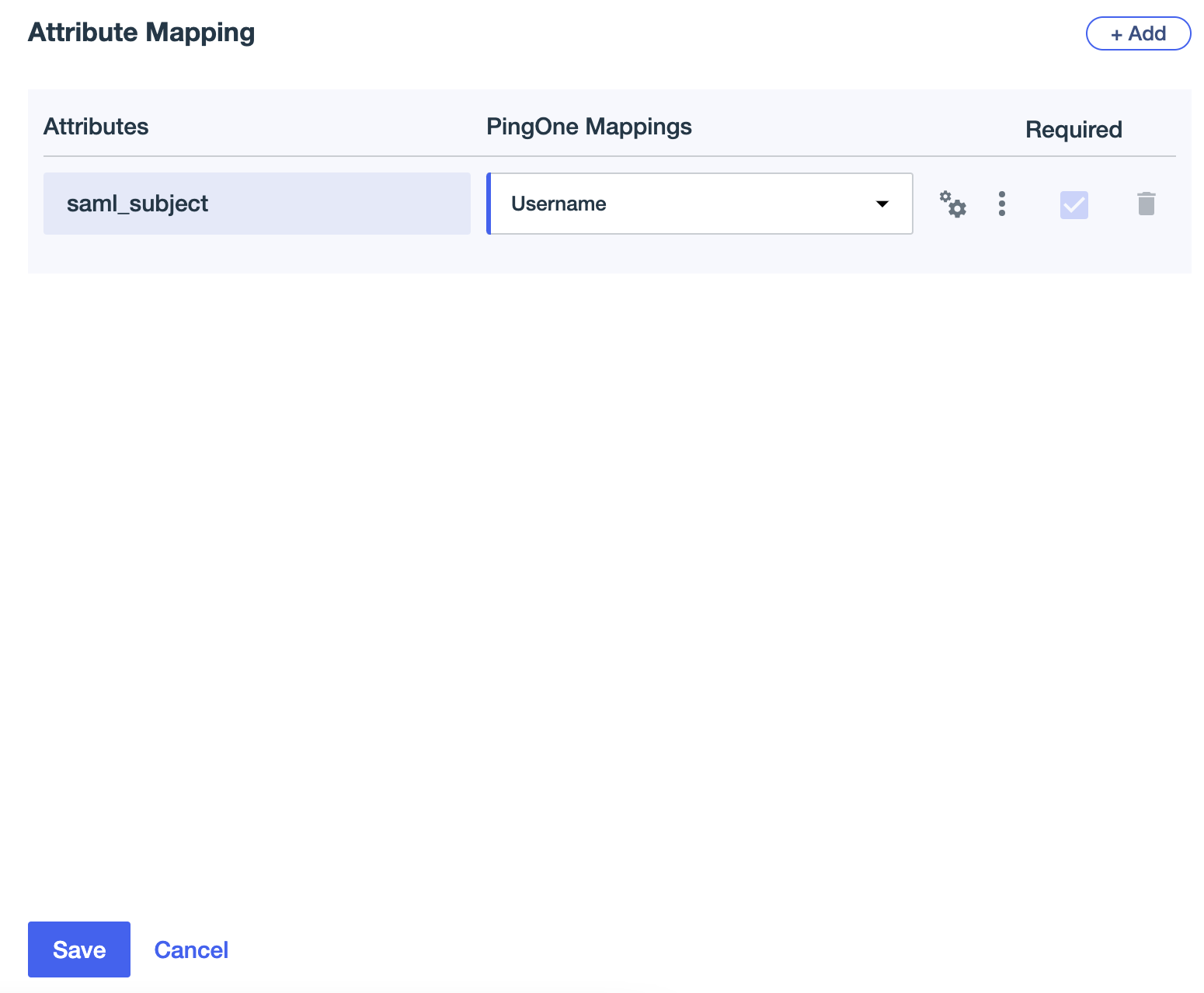

Go to the Attributes in the Overview tab and change the saml_subject Attribute to Username on the PingOne Mappings column.

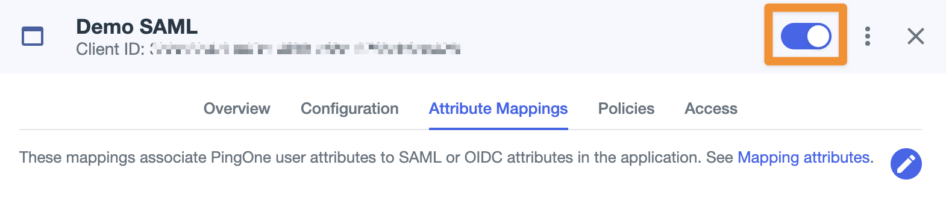

You can now enable the application.

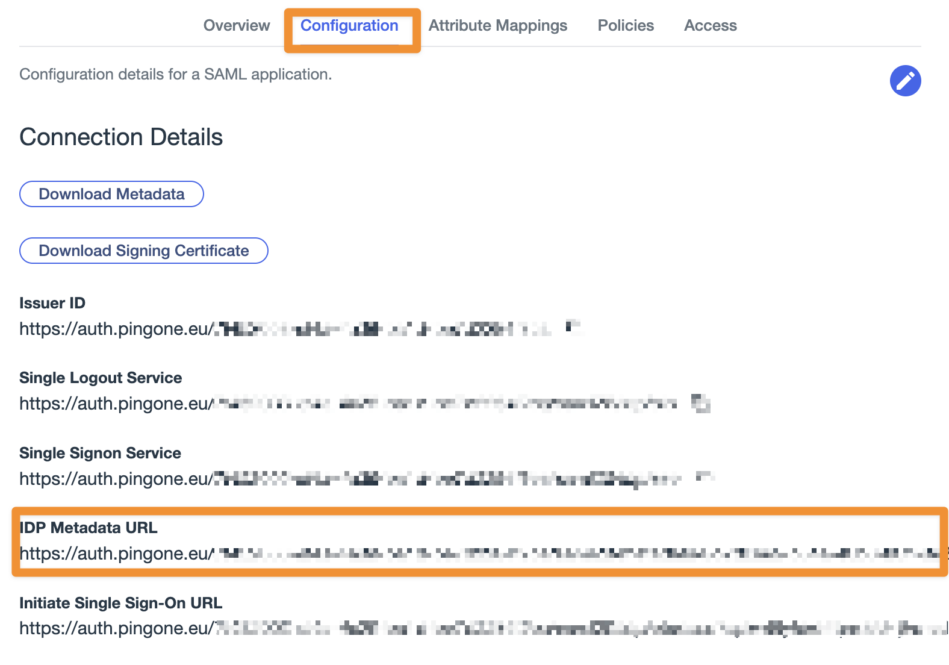

The next step is to copy the SAML Metadata. Just go to Configuration and copy the IDP Metadata URL.

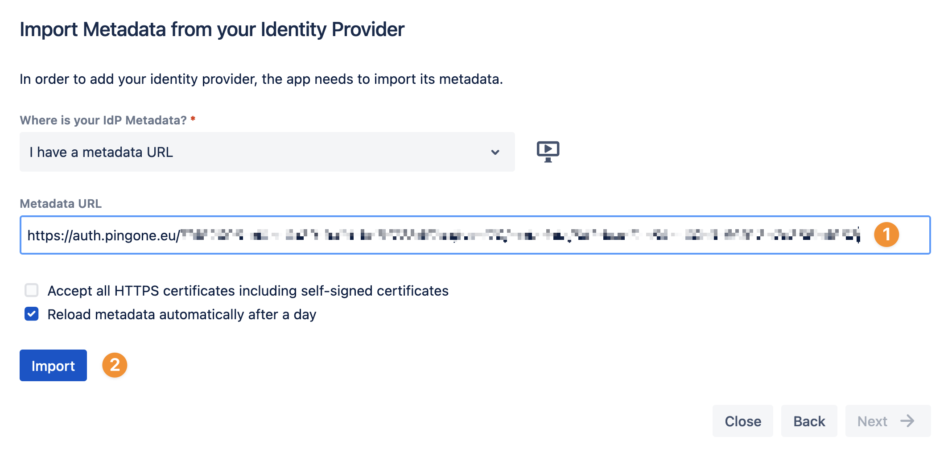

Now go back to the SAML SSO configuration, paste your Metadata URL, and click Import. After a successful import, click Next.
Now, you have the possibility to configure the user ID attribute and its transformation options. In our setup, the user ID is sent in the NameID attribute of the IdP in a format that matches the one in the Atlassian product, so we don’t need to change anything here.

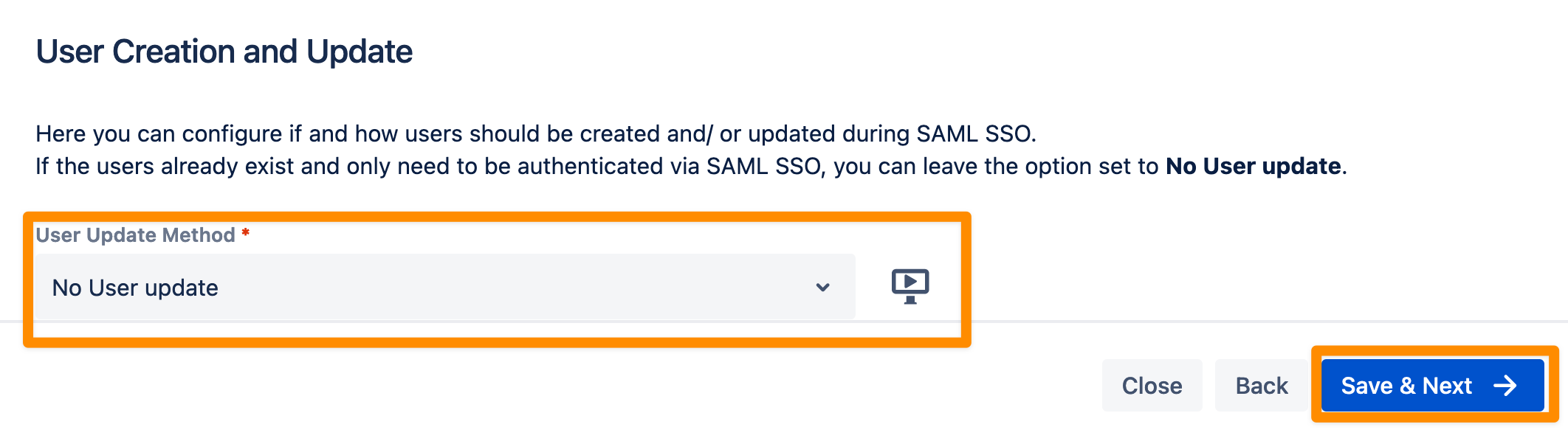

Under User Creation and Update, you can leave the setting No User Update and click Next.
Now, you can save the configuration by clicking on the Save & Next button.
Test
It’s time to test your settings. Our plugin will create a tracker link to test your configuration. Please click ‘Start’ and follow the instructions.
After a successful test, you can enable the ‘Enable SSO Redirect’ checkbox. From now on, every unauthenticated user will be automatically redirected to PingOne to sign in.
